08wk-2, 09wk-1: (XAI, 설명가능한 인공지능) – Class Activation Map

Author

최규빈

Published

April 28, 2025

1. 강의영상

2. Imports

import torch
import torchvision
import PIL
import requests
import io
import matplotlib.pyplot as plt

3. torch.einsum

A. transpose

- test tensor

tsr = torch.arange(12).reshape(4,3)
tsr
tensor([[ 0,  1,  2],
        [ 3,  4,  5],
        [ 6,  7,  8],
        [ 9, 10, 11]])

- 행렬을 transpose하는 방법1

tsr.t()
tensor([[ 0,  3,  6,  9],
        [ 1,  4,  7, 10],
        [ 2,  5,  8, 11]])

- 행렬을 transpose하는 방법2

torch.einsum('ij -> ji', tsr)
tensor([[ 0,  3,  6,  9],
        [ 1,  4,  7, 10],
        [ 2,  5,  8, 11]])

B. 행렬곱

- test tensors

tsr1 = torch.arange(12).reshape(4,3).float()
tsr2 = torch.arange(15).reshape(3,5).float()
tsr1,tsr2
(tensor([[ 0.,  1.,  2.],
         [ 3.,  4.,  5.],
         [ 6.,  7.,  8.],
         [ 9., 10., 11.]]),
 tensor([[ 0.,  1.,  2.,  3.,  4.],
         [ 5.,  6.,  7.,  8.,  9.],
         [10., 11., 12., 13., 14.]]))

- 행렬곱을 수행하는 방법1

tsr1 @ tsr2
tensor([[ 25.,  28.,  31.,  34.,  37.],
        [ 70.,  82.,  94., 106., 118.],
        [115., 136., 157., 178., 199.],
        [160., 190., 220., 250., 280.]])

- 행렬곱을 수행하는 방법2

torch.einsum('ij, jk -> ik', tsr1,tsr2)
tensor([[ 25.,  28.,  31.,  34.,  37.],
        [ 70.,  82.,  94., 106., 118.],
        [115., 136., 157., 178., 199.],
        [160., 190., 220., 250., 280.]])

C. img_plt vs img_pytorch

- r,g,b 를 의미하는 tensor

r = torch.zeros(16).reshape(4,4) + 1.0
g = torch.zeros(16).reshape(4,4)
b = torch.zeros(16).reshape(4,4)

- torch를 쓰기 위해서는 이미지가 이렇게 저장되어 있어야함

img_pytorch = torch.stack([r,g,b],axis=0).reshape(1,3,4,4)
print(img_pytorch)
print(img_pytorch.shape)
tensor([[[[1., 1., 1., 1.],
          [1., 1., 1., 1.],
          [1., 1., 1., 1.],
          [1., 1., 1., 1.]],

         [[0., 0., 0., 0.],
          [0., 0., 0., 0.],
          [0., 0., 0., 0.],
          [0., 0., 0., 0.]],

         [[0., 0., 0., 0.],
          [0., 0., 0., 0.],
          [0., 0., 0., 0.],
          [0., 0., 0., 0.]]]])
torch.Size([1, 3, 4, 4])

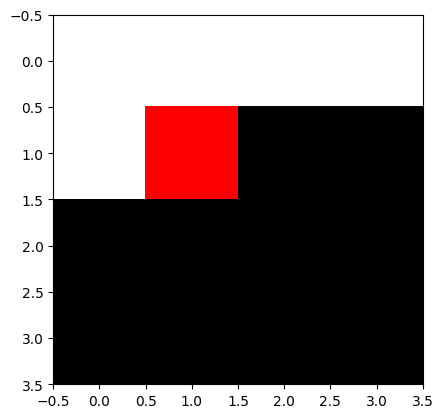

- matplotlib로 시각화를 하기 위해서는 이미지가 이렇게 저장되어 있어야함

img_matplotlib = torch.stack([r,g,b],axis=-1)
print(img_matplotlib)
print(img_matplotlib.shape)
plt.imshow(img_matplotlib)
tensor([[[1., 0., 0.],
         [1., 0., 0.],
         [1., 0., 0.],
         [1., 0., 0.]],

        [[1., 0., 0.],
         [1., 0., 0.],
         [1., 0., 0.],
         [1., 0., 0.]],

        [[1., 0., 0.],
         [1., 0., 0.],
         [1., 0., 0.],
         [1., 0., 0.]],

        [[1., 0., 0.],
         [1., 0., 0.],
         [1., 0., 0.],
         [1., 0., 0.]]])
torch.Size([4, 4, 3])

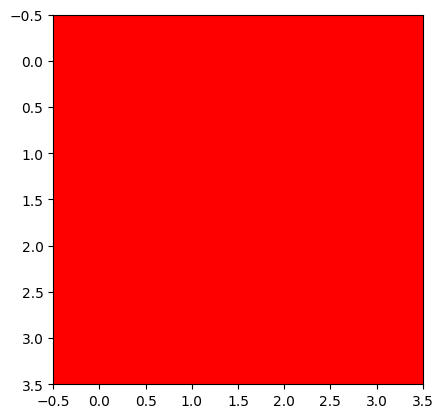

- img_pytorch 를 plt.imshow로 시각화

# 잘못된코드
plt.imshow(img_pytorch.squeeze().reshape(4,4,3))

# 올바른코드1
plt.imshow(torch.einsum('cij -> ijc', img_pytorch.squeeze()))

# 올바른코드2
plt.imshow(img_pytorch.squeeze().permute(1,2,0))

4. 이미지 자료 처리

A. 데이터

- 데이터 다운로드

train_dataset = torchvision.datasets.OxfordIIITPet(
    root='./data',
    split='trainval',
    download=True,
    target_types='binary-category'
)
test_dataset = torchvision.datasets.OxfordIIITPet(
    root='./data',
    split='test',
    download=True,
    target_types='binary-category'
)
train_dataset[0][0]

train_dataset[0][1]
0

B. 이미지 변환

- x_pil 을 tensor로 바꾸어 보자.

x_pil = train_dataset[0][0]
x_pil

to_tensor = torchvision.transforms.ToTensor() # PIL를 텐서로 만드는 함수를 리턴
to_tensor(x_pil)
tensor([[[0.1451, 0.1373, 0.1412,  ..., 0.9686, 0.9765, 0.9765],
         [0.1373, 0.1373, 0.1451,  ..., 0.9647, 0.9725, 0.9765],
         [0.1373, 0.1412, 0.1529,  ..., 0.9686, 0.9804, 0.9804],
         ...,
         [0.0196, 0.0157, 0.0157,  ..., 0.2863, 0.2471, 0.2706],
         [0.0157, 0.0118, 0.0118,  ..., 0.2392, 0.2157, 0.2510],
         [0.1098, 0.1098, 0.1059,  ..., 0.2314, 0.2549, 0.2980]],

        [[0.0784, 0.0706, 0.0745,  ..., 0.9725, 0.9725, 0.9725],
         [0.0706, 0.0706, 0.0784,  ..., 0.9686, 0.9686, 0.9725],
         [0.0706, 0.0745, 0.0863,  ..., 0.9647, 0.9765, 0.9765],
         ...,
         [0.0235, 0.0196, 0.0196,  ..., 0.4627, 0.4039, 0.4314],
         [0.0118, 0.0078, 0.0078,  ..., 0.3882, 0.3843, 0.4235],
         [0.1059, 0.1059, 0.1059,  ..., 0.3686, 0.4157, 0.4588]],

        [[0.0471, 0.0392, 0.0431,  ..., 0.9922, 0.9922, 0.9922],
         [0.0392, 0.0392, 0.0471,  ..., 0.9843, 0.9882, 0.9922],
         [0.0392, 0.0431, 0.0549,  ..., 0.9843, 0.9961, 0.9961],
         ...,
         [0.0941, 0.0902, 0.0902,  ..., 0.9608, 0.9216, 0.8784],
         [0.0745, 0.0706, 0.0706,  ..., 0.9255, 0.9373, 0.8980],
         [0.1373, 0.1373, 0.1373,  ..., 0.8392, 0.9098, 0.8745]]])
plt.imshow(to_tensor(x_pil) .permute(1,2,0))

- 궁극적으로는 train_dataset의 모든 이미지를 (3680,3,???,???)로 정리하여 X라고 하고 싶음. \(\to\) 이걸 하기 위해서는 이미지 크기를 통일시켜야함. \(\to\) 이미지크기를 통일시키는 방법을 알아보자.

resize = torchvision.transforms.Resize((512,512)) # 512,512로 이미지를 조정해주는 함수가 리턴
to_tensor(resize(train_dataset[0][0])).shape
torch.Size([3, 512, 512])

- 크기가 8인 이미지들의 배치를 만들기

Xm = torch.stack([to_tensor(resize(train_dataset[n][0])) for n in range(8)],axis=0)
Xm.shape
torch.Size([8, 3, 512, 512])

5. AP Layer

A. AP layer

ap = torch.nn.AdaptiveAvgPool2d(output_size=1)
X = torch.arange(1*3*4*4).reshape(1,3,4,4).float()
X
tensor([[[[ 0.,  1.,  2.,  3.],
          [ 4.,  5.,  6.,  7.],
          [ 8.,  9., 10., 11.],
          [12., 13., 14., 15.]],

         [[16., 17., 18., 19.],
          [20., 21., 22., 23.],
          [24., 25., 26., 27.],
          [28., 29., 30., 31.]],

         [[32., 33., 34., 35.],
          [36., 37., 38., 39.],
          [40., 41., 42., 43.],
          [44., 45., 46., 47.]]]])
ap(X) # 채널별평균
tensor([[[[ 7.5000]],

         [[23.5000]],

         [[39.5000]]]])

B. AP, Linear의 교환

- 신기한것 보여줄게요..

r = X[:,0,:,:]
g = X[:,1,:,:]
b = X[:,2,:,:]
ap(r)*0.1 + ap(g)*0.2 + ap(b)*0.3
tensor([[[17.3000]]])
ap(r*0.1 + g*0.2 + b*0.3)
tensor([[[17.3000]]])
  • 신기한게 아니고 당연하죠..

- 위의 두 계산결과를 torch.nn.AdaptiveAvgPool2d, torch.nn.Linear, 그리고 torch.nn.Flatten()을 조합하여 구현해보자.

resnet18
ResNet(
  (conv1): Conv2d(3, 64, kernel_size=(7, 7), stride=(2, 2), padding=(3, 3), bias=False)
  (bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
  (relu): ReLU(inplace=True)
  (maxpool): MaxPool2d(kernel_size=3, stride=2, padding=1, dilation=1, ceil_mode=False)
  (layer1): Sequential(
    (0): BasicBlock(
      (conv1): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      (bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (relu): ReLU(inplace=True)
      (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      (bn2): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    )
    (1): BasicBlock(
      (conv1): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      (bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (relu): ReLU(inplace=True)
      (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      (bn2): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    )
  )
  (layer2): Sequential(
    (0): BasicBlock(
      (conv1): Conv2d(64, 128, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
      (bn1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (relu): ReLU(inplace=True)
      (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      (bn2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (downsample): Sequential(
        (0): Conv2d(64, 128, kernel_size=(1, 1), stride=(2, 2), bias=False)
        (1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      )
    )
    (1): BasicBlock(
      (conv1): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      (bn1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (relu): ReLU(inplace=True)
      (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      (bn2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    )
  )
  (layer3): Sequential(
    (0): BasicBlock(
      (conv1): Conv2d(128, 256, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
      (bn1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (relu): ReLU(inplace=True)
      (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      (bn2): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (downsample): Sequential(
        (0): Conv2d(128, 256, kernel_size=(1, 1), stride=(2, 2), bias=False)
        (1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      )
    )
    (1): BasicBlock(
      (conv1): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      (bn1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (relu): ReLU(inplace=True)
      (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      (bn2): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    )
  )
  (layer4): Sequential(
    (0): BasicBlock(
      (conv1): Conv2d(256, 512, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
      (bn1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (relu): ReLU(inplace=True)
      (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      (bn2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (downsample): Sequential(
        (0): Conv2d(256, 512, kernel_size=(1, 1), stride=(2, 2), bias=False)
        (1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      )
    )
    (1): BasicBlock(
      (conv1): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      (bn1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
      (relu): ReLU(inplace=True)
      (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
      (bn2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    )
  )
  (avgpool): AdaptiveAvgPool2d(output_size=(1, 1))
  (fc): Linear(in_features=512, out_features=1, bias=True)
)
# ap(r)*0.1 + ap(g)*0.2 + ap(b)*0.3
ap = torch.nn.AdaptiveAvgPool2d(output_size=1)
flattn = torch.nn.Flatten()
linr = torch.nn.Linear(3,1,bias=False)
linr.weight.data = torch.tensor([[ 0.1,  0.2, 0.3]])
#---#
print(X.shape)
print(ap(X).shape) # ap(r), ap(g), ap(b) 의 값이 들어있음.
print(flattn(ap(X)).shape) # [ap(r), ap(g), ap(b)] 형태로
print(linr(flattn(ap(X))).shape) # ap(r)*0.1 + ap(g)*0.2 + ap(b)*0.3
torch.Size([1, 3, 4, 4])
torch.Size([1, 3, 1, 1])
torch.Size([1, 3])
torch.Size([1, 1])
#ap(r*0.1 + g*0.2 + b*0.3)
ap = torch.nn.AdaptiveAvgPool2d(output_size=1)
flattn = torch.nn.Flatten()
linr = torch.nn.Linear(3,1,bias=False)
linr.weight.data = torch.tensor([[ 0.1,  0.2, 0.3]])
#---#
def _linr(X):
    return torch.einsum('ocij, kc -> okij', X, linr.weight.data)
#---#
print(X.shape) #
print(_linr(X).shape) # r*0.1 + g*0.2 + b*0.3
print(ap(_linr(X)).shape) # ap(r*0.1 + g*0.2 + b*0.3 )
print(flattn(ap(_linr(X))).shape)
torch.Size([1, 3, 4, 4])
torch.Size([1, 1, 4, 4])
torch.Size([1, 1, 1, 1])
torch.Size([1, 1])

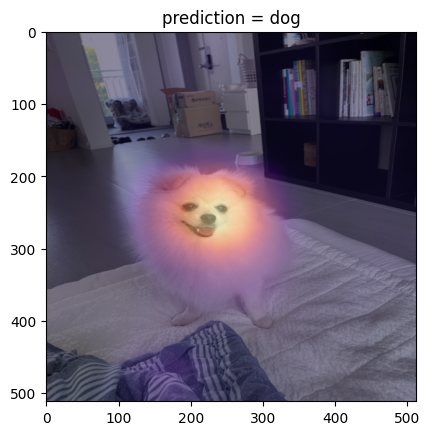

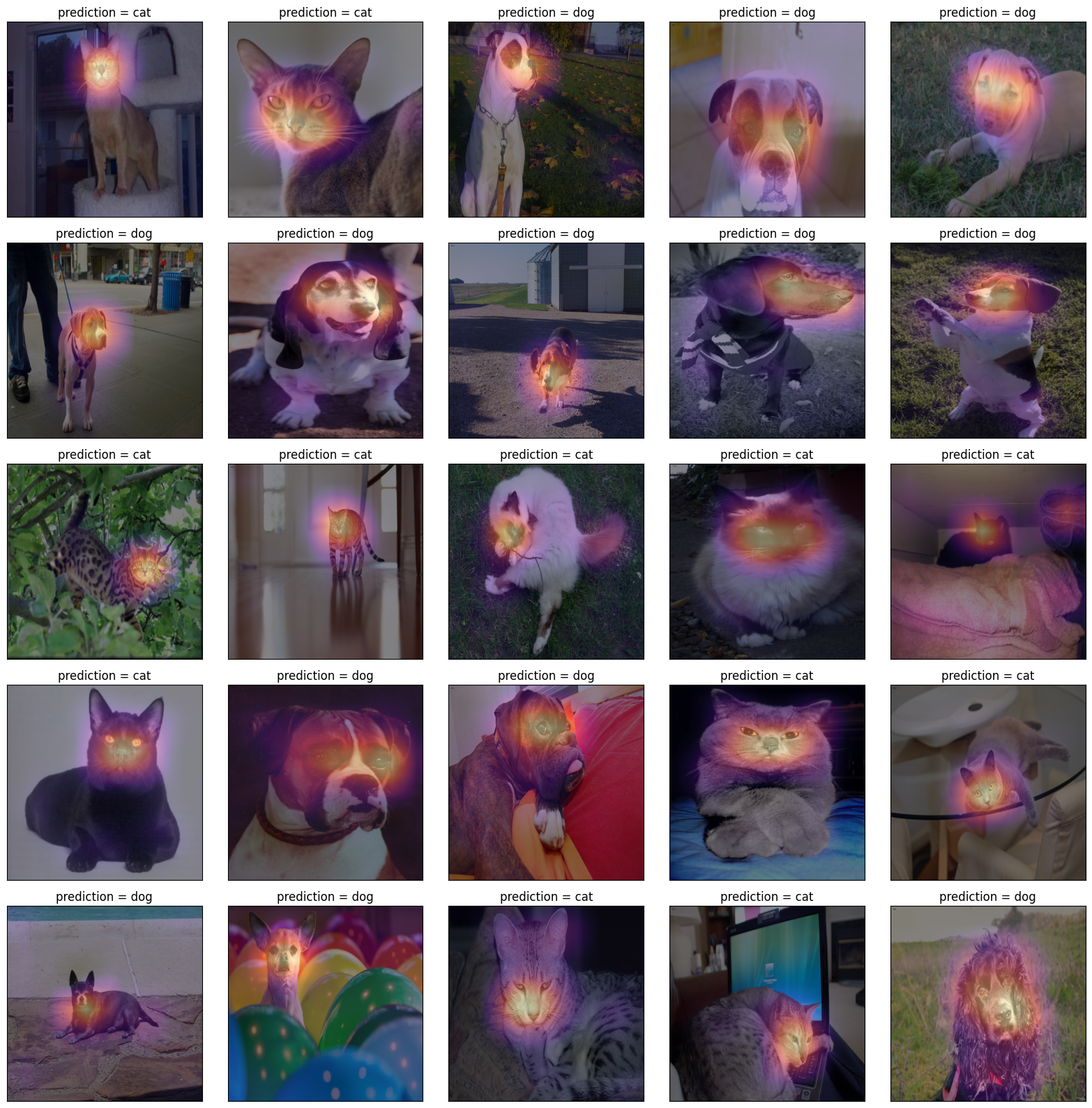

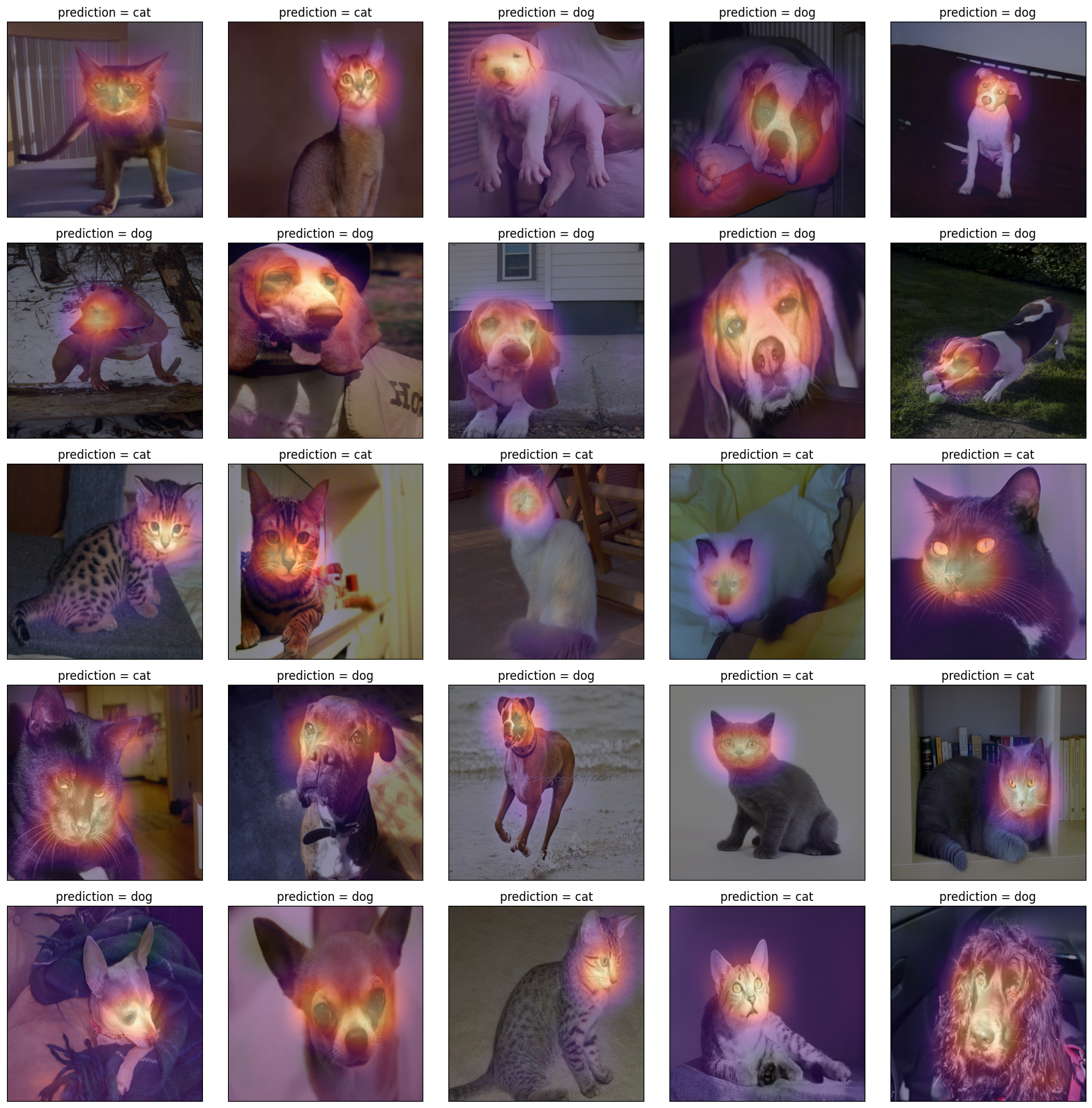

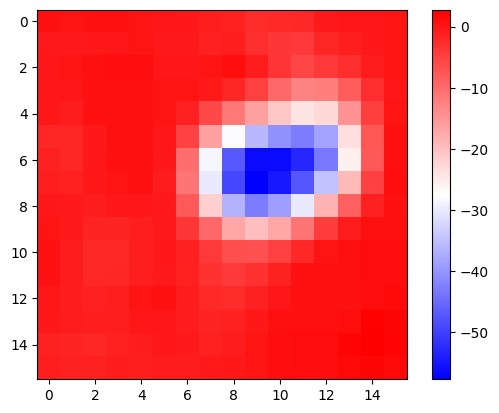

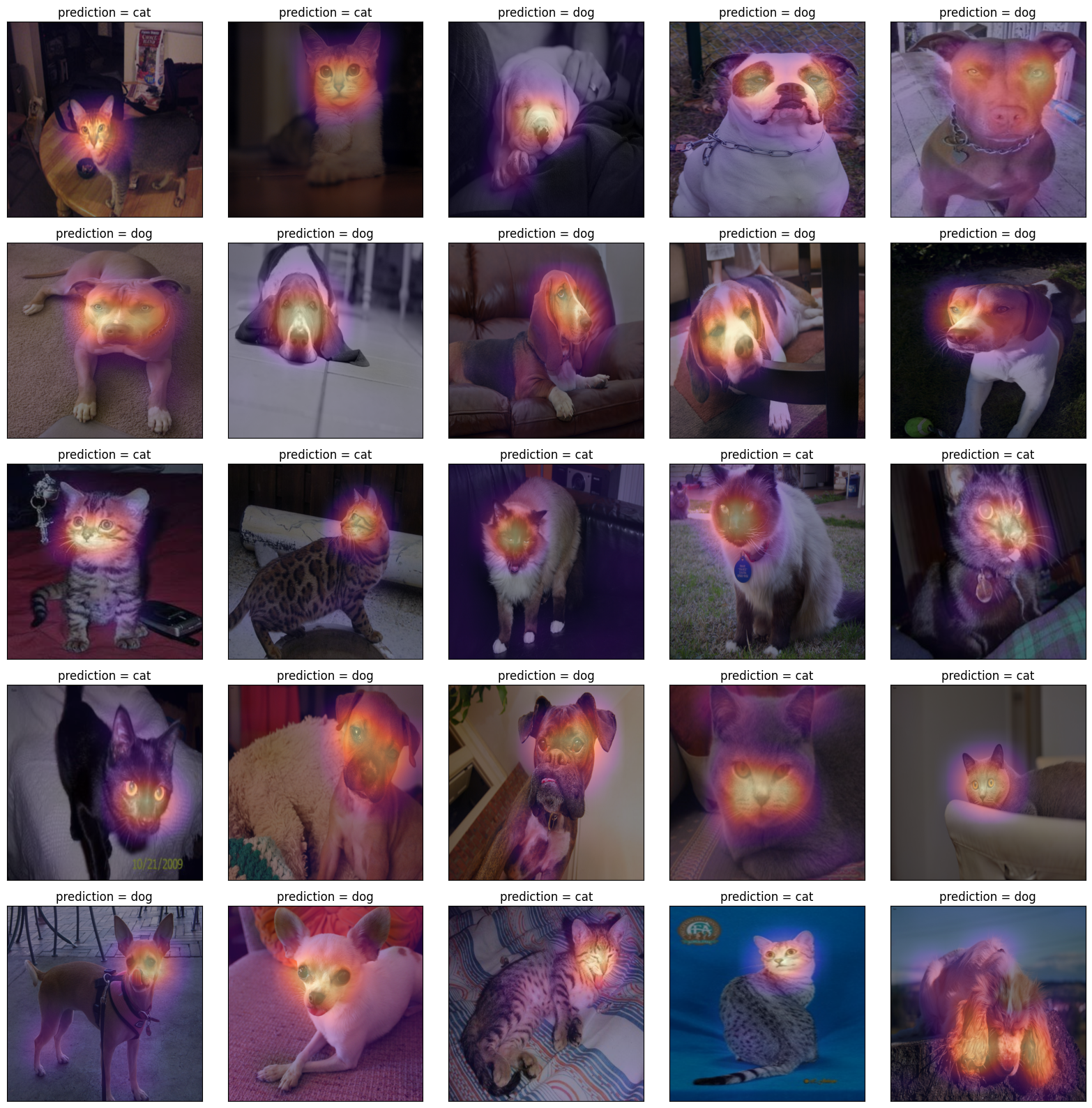

6. CAM(Zhou et al. 2016)의 구현

Zhou, Bolei, Aditya Khosla, Agata Lapedriza, Aude Oliva, and Antonio Torralba. 2016. “Learning Deep Features for Discriminative Localization.” In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2921–29.

ref: https://arxiv.org/abs/1512.04150

- 이 강의노트는 위의 논문의 내용을 재구성하였음.

A. 0단계 – (X,y), (XX,yy)

train_dataset = torchvision.datasets.OxfordIIITPet(
    root='./data',
    split='trainval',
    download=True,
    target_types='binary-category',
)
test_dataset = torchvision.datasets.OxfordIIITPet(
    root='./data',
    split='test',
    download=True,
    target_types='binary-category',
)
compose = torchvision.transforms.Compose([
    torchvision.transforms.Resize((512,512)),
    torchvision.transforms.ToTensor()
])
X = torch.stack([compose(train_dataset[i][0]) for i in range(3680)],axis=0)
XX = torch.stack([compose(test_dataset[i][0]) for i in range(3669)],axis=0)
y = torch.tensor([train_dataset[i][1] for i in range(3680)]).reshape(-1,1).float()
yy = torch.tensor([test_dataset[i][1] for i in range(3669)]).reshape(-1,1).float()

B. 1단계 – 이미지분류 잘하는 네트워크 선택 후 학습

torch.manual_seed(43052)
#--Step1
ds_train = torch.utils.data.TensorDataset(X,y)
dl_train = torch.utils.data.DataLoader(ds_train, batch_size=32, shuffle=True)
ds_test = torch.utils.data.TensorDataset(XX,yy)
dl_test = torch.utils.data.DataLoader(ds_test, batch_size=32)
#--Step2
resnet18 = torchvision.models.resnet18(pretrained=True)
resnet18.fc = torch.nn.Linear(512,1)
loss_fn = torch.nn.BCEWithLogitsLoss()
optimizr = torch.optim.Adam(resnet18.parameters(), lr=1e-5)
#--Step3
resnet18.to("cuda:0")
for epoc in range(3):
    resnet18.train()
    for Xm,ym in dl_train:
        Xm = Xm.to("cuda:0")
        ym = ym.to("cuda:0")
        #1
        netout = resnet18(Xm)
        #2
        loss = loss_fn(netout,ym)
        #3
        loss.backward()
        #4
        optimizr.step()
        optimizr.zero_grad()
    #---#
    resnet18.eval()
    s = 0
    for Xm,ym in dl_train:
        Xm = Xm.to("cuda:0")
        ym = ym.to("cuda:0")
        s = s + ((resnet18(Xm).data > 0) == ym).sum().item()
    acc = s/3680
    print(f"train_acc = {acc:.4f}")
#--Step4
resnet18.eval()
s = 0
for Xm,ym in dl_test:
    Xm = Xm.to("cuda:0")
    ym = ym.to("cuda:0")
    s = s + ((resnet18(Xm).data > 0) == ym).sum().item()
acc = s/3669
print(f"test_acc = {acc:.4f}")
/home/cgb3/anaconda3/envs/dl2025/lib/python3.9/site-packages/torchvision/models/_utils.py:208: UserWarning: The parameter 'pretrained' is deprecated since 0.13 and may be removed in the future, please use 'weights' instead.
  warnings.warn(
/home/cgb3/anaconda3/envs/dl2025/lib/python3.9/site-packages/torchvision/models/_utils.py:223: UserWarning: Arguments other than a weight enum or `None` for 'weights' are deprecated since 0.13 and may be removed in the future. The current behavior is equivalent to passing `weights=ResNet18_Weights.IMAGENET1K_V1`. You can also use `weights=ResNet18_Weights.DEFAULT` to get the most up-to-date weights.
  warnings.warn(msg)
train_acc = 0.9815
train_acc = 0.9973
train_acc = 0.9995
test_acc = 0.9951

C. 2단계– Linear와 AP의 순서를 바꿈

- resnet18 을 재구성하여 net 를 만들자.

stem = torch.nn.Sequential(
    torch.nn.Sequential(
        resnet18.conv1,
        resnet18.bn1,
        resnet18.relu,
        resnet18.maxpool
    ),
    resnet18.layer1,
    resnet18.layer2,
    resnet18.layer3,
    resnet18.layer4
)
head = torch.nn.Sequential(
    resnet18.avgpool,
    torch.nn.Flatten(),
    resnet18.fc
)
net = torch.nn.Sequential(
    stem,
    head
)

- 1개의 observation을 고정

x = X[[0]].to("cuda:0")
net(x), resnet18(x)
(tensor([[-5.5613]], device='cuda:0', grad_fn=<AddmmBackward0>),
 tensor([[-5.5613]], device='cuda:0', grad_fn=<AddmmBackward0>))

- 위와 같은 값 -5.5636이 나오는 과정을 추적하여 보자.

# 계산방식1: 원래계산방식
ap = head[0]
flattn = head[1]
linr = head[2]
#---#
print(f"{x.shape} -- x")
print(f"{stem(x).shape} -- stem(x)")
print(f"{ap(stem(x)).shape} -- ap(stem(x))")
print(f"{flattn(ap(stem(x))).shape} -- flattn(ap(stem(x)))")
print(f"{linr(flattn(ap(stem(x)))).shape} -- linr(flattn(ap(stem(x))))")
torch.Size([1, 3, 512, 512]) -- x
torch.Size([1, 512, 16, 16]) -- stem(x)
torch.Size([1, 512, 1, 1]) -- ap(stem(x))
torch.Size([1, 512]) -- flattn(ap(stem(x)))
torch.Size([1, 1]) -- linr(flattn(ap(stem(x))))

현재 네트워크 \[\underset{(1,3,512,512)}{\boldsymbol x} \overset{stem}{\to} \left( \underset{(1,512,16,16)}{\tilde{\boldsymbol x}} \overset{ap}{\to} \underset{(1,512,1,1)}{{\boldsymbol \sharp}}\overset{flattn}{\to} \underset{(1,512)}{{\boldsymbol \sharp}}\overset{linr}{\to} \underset{(1,1)}{logit}\right) = [[-5.5613]]\]

바꾸고 싶은 네트워크 \[\underset{(1,3,224,224)}{\boldsymbol x} \overset{stem}{\to} \left( \underset{(1,512,16,16)}{\tilde{\boldsymbol x}} \overset{\_linr}{\to} \underset{(1,1,16,16)}{{\boldsymbol \sharp}}\overset{ap}{\to} \underset{(1,1,1,1)}{{\boldsymbol \sharp}}\overset{flattn}{\to} \underset{(1,1)}{logit}\right) = [[-5.5613]]\]

# 계산방식2
ap = head[0]
flattn = head[1]
linr = head[2]
def _linr(xtilde):
    return torch.einsum('ocij, kc -> okij', xtilde, linr.weight.data) + linr.bias.data
#---#
print(f"{x.shape} -- x")
print(f"{stem(x).shape} -- stem(x)")
print(f"{_linr(stem(x)).shape} -- _linr(stem(x))")
print(f"{ap(_linr(stem(x))).shape} -- ap(_linr(stem(x)))")
print(f"{flattn(ap(_linr(stem(x)))).shape} -- flattn(ap(_linr(stem(x))))")
torch.Size([1, 3, 512, 512]) -- x
torch.Size([1, 512, 16, 16]) -- stem(x)
torch.Size([1, 1, 16, 16]) -- _linr(stem(x))
torch.Size([1, 1, 1, 1]) -- ap(_linr(stem(x)))
torch.Size([1, 1]) -- flattn(ap(_linr(stem(x))))
linr(flattn(ap(stem(x)))), flattn(ap(_linr(stem(x))))
(tensor([[-5.5613]], device='cuda:0', grad_fn=<AddmmBackward0>),
 tensor([[-5.5613]], device='cuda:0', grad_fn=<ViewBackward0>))

\(\star\) 잠깐 멈추고 생각 좀 해보자..

- 원래 계산방식을 적용

linr(flattn(ap(stem(x))))
tensor([[-5.5613]], device='cuda:0', grad_fn=<AddmmBackward0>)

- 바뀐 계산방식을 적용

flattn(ap(_linr(stem(x))))
tensor([[-5.5613]], device='cuda:0', grad_fn=<ViewBackward0>)

- 바뀐 계산방식을 좀더 파고 들어서 분석해보자.

_linr(stem(x)).long()
tensor([[[[  0,   0,   0,   0,   0,   0,   0,   0,  -1,  -2,  -2,  -2,   0,   0,
             0,   0],
          [  0,   0,   0,   0,   0,   0,   0,  -1,   0,  -2,  -3,  -4,  -1,   0,
             0,   0],
          [  0,   0,   0,   1,   0,   0,   0,   0,   1,   0,  -3,  -5,  -4,  -2,
             0,   0],
          [  0,   0,   0,   0,   0,   0,   0,   0,  -1,  -4,  -9, -12, -12,  -8,
            -2,   0],
          [  0,   0,   0,   0,   0,   0,  -1,  -5, -11, -16, -20, -24, -22, -14,
            -4,   0],
          [ -1,  -1,   0,   0,   0,   0,  -5, -16, -28, -35, -40, -43, -38, -23,
            -7,   0],
          [ -1,  -1,   0,   0,   0,   0, -10, -28, -47, -56, -56, -53, -43, -25,
            -7,   0],
          [  0,  -1,   0,   0,   0,   0, -11, -29, -49, -57, -54, -47, -34, -19,
            -4,   1],
          [  0,   0,   0,   0,   0,   0,  -7, -21, -36, -43, -38, -29, -18,  -8,
            -1,   0],
          [  0,   0,  -1,  -1,   0,   0,  -3,  -9, -16, -19, -16, -11,  -4,   0,
             0,   0],
          [  0,   0,  -2,  -2,   0,   0,  -1,  -3,  -6,  -7,  -5,  -2,   0,   0,
             1,   1],
          [  0,   0,  -2,  -1,   0,   0,  -1,  -3,  -4,  -3,  -1,   0,   0,   0,
             1,   1],
          [  0,   0,  -1,   0,   0,   0,   0,  -2,  -2,  -1,   0,   0,   0,   0,
             1,   1],
          [  0,   0,   0,   0,   0,   0,   0,  -1,  -1,   0,   0,   0,   0,   1,
             2,   1],
          [ -1,  -1,  -1,  -1,   0,   0,   0,  -1,   0,   0,   0,   1,   1,   2,
             2,   2],
          [  0,  -1,  -1,   0,   0,   0,   0,   0,   0,   0,   0,   1,   1,   1,
             1,   1]]]], device='cuda:0')
  • 여러가지 값들이 있지만 (16*16=256개의 값들) 아무튼 이 값들의 평균은 -5.5613 임. (이 값이 작을수록 이 그림은 고양이라는 의미임)
  • 그런데 살펴보니까 대부분의 위치에서 -에 가까운 값을가지고, 특정위치에서만 엄청 작은 값이 존재하여 -5.5613 이라는 평균값이 나오는 것임.
  • 결국 이 특정위치에 존재하는 엄청 작은 값들이 x가 고양이라고 판단하는 근거가 된다.
why = _linr(stem(x))

바꾸고 싶은 네트워크 – why라는 이름을 적용하여 \[\underset{(1,3,224,224)}{\boldsymbol x} \overset{stem}{\to} \left( \underset{(1,512,16,16)}{\tilde{\boldsymbol x}} \overset{\_linr}{\to} \underset{(1,1,16,16)}{\bf why}\overset{ap}{\to} \underset{(1,1,1,1)}{{\boldsymbol \sharp}}\overset{flattn}{\to} \underset{(1,1)}{logit}\right) = [[-5.5613]]\]

D. 3단계 – WHY 시각화

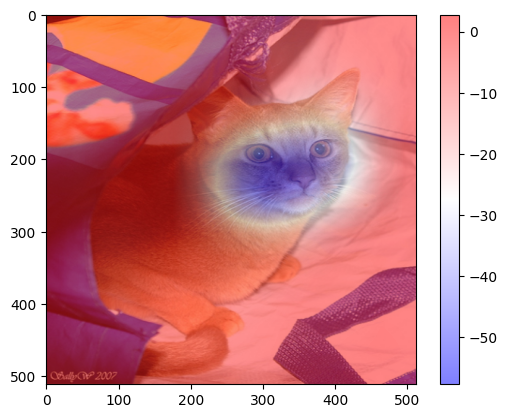

# 시각화1 – why와 img를 겹쳐서 그려보자.

plt.imshow(why.squeeze().cpu().detach(),cmap="bwr")
plt.colorbar()

plt.imshow(x.cpu().detach().squeeze().permute(1,2,0))
why_resized = torch.nn.functional.interpolate(
    why,
    size=(512,512),
    mode="bilinear",
)
plt.imshow(why_resized.squeeze().cpu().detach(),cmap="bwr",alpha=0.5)
plt.colorbar()

#

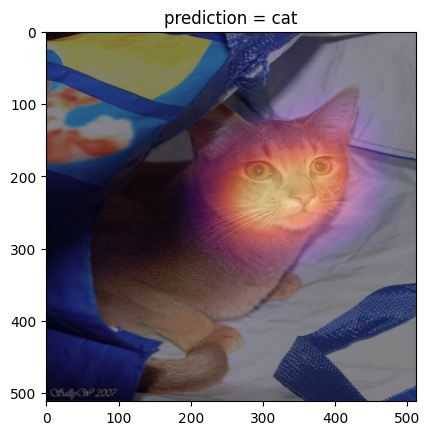

# 시각화2 – colormap을 magma로 적용

x = X[[0]].to("cuda:0")
if net(x) > 0:
    pred = "dog"
    why = _linr(stem(x))
else:
    pred = "cat"
    why = - _linr(stem(x))
plt.imshow(x.cpu().detach().squeeze().permute(1,2,0))
why_resized = torch.nn.functional.interpolate(
    why,
    size=(512,512),
    mode="bilinear",
)
plt.imshow(why_resized.squeeze().cpu().detach(),cmap="magma",alpha=0.5)
plt.title(f"prediction = {pred}");

#

# 시각화3 – 하니를 시각화해보자.

url = 'https://github.com/guebin/DL2025/blob/main/imgs/hani1.jpeg?raw=true'
hani_pil = PIL.Image.open(
    io.BytesIO(requests.get(url).content)
)
x = compose(hani_pil).reshape(1,3,512,512).to("cuda:0")
if net(x) > 0:
    pred = "dog"
    why = _linr(stem(x))
else:
    pred = "cat"
    why = - _linr(stem(x))
plt.imshow(x.cpu().detach().squeeze().permute(1,2,0))
why_resized = torch.nn.functional.interpolate(
    why,
    size=(512,512),
    mode="bilinear",
)
plt.imshow(why_resized.squeeze().cpu().detach(),cmap="magma",alpha=0.5)
plt.title(f"prediction = {pred}");

#

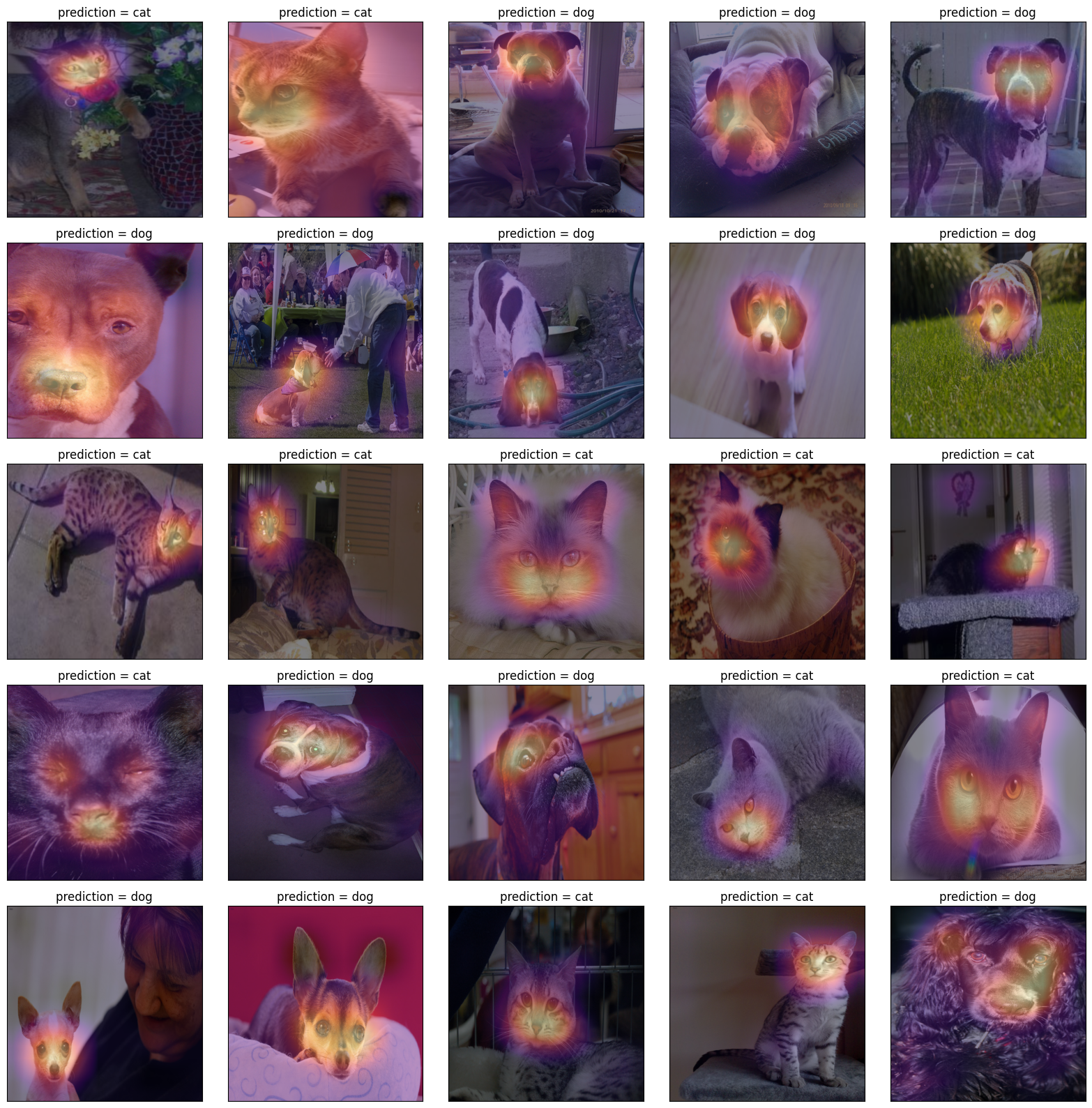

# 시각화4 – XX의 이미지를 시각화해보자.

fig, ax = plt.subplots(5,5)
#---#
k = 0
for i in range(5):
    for j in range(5):
        x = XX[[k]].to("cuda:0")
        if net(x) > 0:
            pred = "dog"
            why = _linr(stem(x))
        else:
            pred = "cat"
            why = - _linr(stem(x))
        plt.imshow(x.cpu().detach().squeeze().permute(1,2,0))
        why_resized = torch.nn.functional.interpolate(
            why,
            size=(512,512),
            mode="bilinear",
        )
        ax[i][j].imshow(x.squeeze().permute(1,2,0).cpu())
        ax[i][j].imshow(why_resized.squeeze().cpu().detach(),cmap="magma",alpha=0.5)
        ax[i][j].set_title(f"prediction = {pred}");
        ax[i][j].set_xticks([])
        ax[i][j].set_yticks([])
        k = k+50
fig.set_figheight(16)
fig.set_figwidth(16)
fig.tight_layout()

fig, ax = plt.subplots(5,5)
#---#
k = 1
for i in range(5):
    for j in range(5):
        x = XX[[k]].to("cuda:0")
        if net(x) > 0:
            pred = "dog"
            why = _linr(stem(x))
        else:
            pred = "cat"
            why = - _linr(stem(x))
        plt.imshow(x.cpu().detach().squeeze().permute(1,2,0))
        why_resized = torch.nn.functional.interpolate(
            why,
            size=(512,512),
            mode="bilinear",
        )
        ax[i][j].imshow(x.squeeze().permute(1,2,0).cpu())
        ax[i][j].imshow(why_resized.squeeze().cpu().detach(),cmap="magma",alpha=0.5)
        ax[i][j].set_title(f"prediction = {pred}");
        ax[i][j].set_xticks([])
        ax[i][j].set_yticks([])
        k = k+50
fig.set_figheight(16)
fig.set_figwidth(16)
fig.tight_layout()

fig, ax = plt.subplots(5,5)
#---#
k = 2
for i in range(5):
    for j in range(5):
        x = XX[[k]].to("cuda:0")
        if net(x) > 0:
            pred = "dog"
            why = _linr(stem(x))
        else:
            pred = "cat"
            why = - _linr(stem(x))
        plt.imshow(x.cpu().detach().squeeze().permute(1,2,0))
        why_resized = torch.nn.functional.interpolate(
            why,
            size=(512,512),
            mode="bilinear",
        )
        ax[i][j].imshow(x.squeeze().permute(1,2,0).cpu())
        ax[i][j].imshow(why_resized.squeeze().cpu().detach(),cmap="magma",alpha=0.5)
        ax[i][j].set_title(f"prediction = {pred}");
        ax[i][j].set_xticks([])
        ax[i][j].set_yticks([])
        k = k+50
fig.set_figheight(16)
fig.set_figwidth(16)
fig.tight_layout()

fig, ax = plt.subplots(5,5)
#---#
k = 3
for i in range(5):
    for j in range(5):
        x = XX[[k]].to("cuda:0")
        if net(x) > 0:
            pred = "dog"
            why = _linr(stem(x))
        else:
            pred = "cat"
            why = - _linr(stem(x))
        plt.imshow(x.cpu().detach().squeeze().permute(1,2,0))
        why_resized = torch.nn.functional.interpolate(
            why,
            size=(512,512),
            mode="bilinear",
        )
        ax[i][j].imshow(x.squeeze().permute(1,2,0).cpu())
        ax[i][j].imshow(why_resized.squeeze().cpu().detach(),cmap="magma",alpha=0.5)
        ax[i][j].set_title(f"prediction = {pred}");
        ax[i][j].set_xticks([])
        ax[i][j].set_yticks([])
        k = k+50
fig.set_figheight(16)
fig.set_figwidth(16)
fig.tight_layout()

#

7. CAM의 한계

- 구조의 제약이 있음

  • head-part가 ap와 linr로만 구성되어야 가능
  • 그렇지 않은 네트워크는 임의로 재구성하여 head-part를 ap와 linr로만 구성 (CAM을 적용하기위한 구조로 만들기 위해서)

- 이후에 등장한 grad-cam의 경우 구조의 제약없이 거의 모든 CNN에 적용가능
